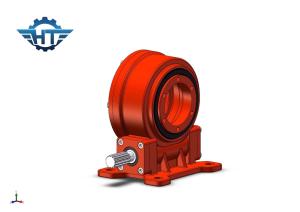

VE7 Slew Drive Gearbox, Envelop Worm With High Torque For Horizontal Single Axis Solar Trackers
Description
Hangtuo is a professional manufacurer who can provide high permance and high precison slewing drive for solar energy and industrial applications.
We devote ourselves to the R&D of customized slewing drive with high precision, special purpose and requirements. With abundant raw materials and high production efficiency, we can supply products to customers as quickly as possible and shorten the time for customers to wait for products. Our internal quality control includes first inspection, mutual inspection, in-process quality control and sampling inspection to ensure product quality. We have complete testing equipments and advanced testing method. We have strong after-sales service team, timely solve customer problems, to provide customers with a variety of services.
Features
1. Rotation ±60 degree or 360 degree.
2. Motor connnet on the left or right side,
3. No need to adjust the gearing clearance; this is already set by the producer before factory
4. Simple installation and low maintenance, every 5 years.
5. Rational space utilization
6. Self-locking gear, therefore a brake is not necessary
7. Easy and fluent method of starting and stopping
8. High accuracy
9. IP66 protection grade
Our Strength
1.Raw material from reliable suppliers;
2.Production process is in strict accordance with ISO9001 Quality Management System;
3.Strict in-process quality control and 100% finished product inspection before delivery;
4.Third party product inspections are acceptable upon customer request.
5.Adoption of standardized product design process and APQP, PPAP, FEMA for application analysis.
Services
1. OEM service
2. We provide standard products and non-standard products;
3. We provide customized samples, customized drawings, door-to-door mapping and other services;
4. We provide a full range of services, including design, processing, packaging, transportation, etc.
Packaging & Shipping
1. Filling with rust-proof oil
2. Packing with protective layers
3. Fixed in the plywood case, pallet, steel frame
Technical Date of Vertical Series
| Model | Ratio | Rated Output Torque | Tilting Torque | Axial Load | Radial Load | Holding Torque | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | kN | kN | N.m | degree | Yes | kg |
| 3" | 31:1 | 300 | 1500 | 3.6 | 15 | 7000 | 40% | ≤0.1 | Yes | 13kg |
| 5" | 37:1 | 637.5 | 5000 | 16 | 27 | 9200 | 40% | ≤0.1 | Yes | 18kg |
| 7" | 57:1 | 1750 | 7000 | 34 | 58 | 13200 | 40% | ≤0.1 | Yes | 28kg |
| 8" | 51:1 | 2250 | 11200 | 50 | 80 | 20400 | 40% | ≤0.1 | Yes | 35kg |
| 9" | 61:1 | 4300 | 16000 | 60 | 130 | 27200 | 40% | ≤0.1 | Yes | 51kg |
| 12" | 78:1 | 5600 | 25000 | 77 | 190 | 40560 | 40% | ≤0.1 | Yes | 61kg |
| 14" | 85:1 | 6750 | 48000 | 110 | 230 | 44200 | 40% | ≤0.1 | Yes | 78 kg |
| 17" | 102:1 | 9460 | 67000 | 142 | 390 | 53040 | 40% | ≤0.1 | Yes | 105 kg |
| 21" | 125:1 | 16000 | 89000 | 337 | 640 | 65000 | 40% | ≤0.1 | Yes | 185 kg |
| 25" | 150:1 | 21450 | 112000 | 476 | 950 | 89000 | 40% | ≤0.1 | Yes | 244 kg |
